ARIOSA
Ariosa is Valsir's heat recovery ventilation system with solutions for both centralised and apartment-level ventilation. The range covers the vertical Ariosa V and Ariosa V Compact, the Ariosa HV for horizontal or vertical installation, the apartment-level Ariosa DOT and DOT Mini, and the room-level Brezza60. Air distribution uses the AriaSilent duct system. All units have an LCD control panel as standard, and the system can be controlled remotely with the VMC app, available on the App Store and Google Play.
Product information
- Counter-flow plate heat exchanger: heat recovery efficiency over 90 %, available with a sensible-heat or enthalpy core
- SEC class A (temperate climate), A+ in cold climate; Ariosa HV also A+ in temperate
- Filtration: ISO ePM1 > 50 % (formerly F7) on supply air, ISO Coarse > 65 % (formerly G4) on extract
- Automatic bypass damper plus temperature and humidity sensors as standard
- Electronic fans: forward-curved blades with constant-flow control
- Control: LCD panel, VMC mobile app or Modbus
- Air flows 70–600 m³/h depending on model: from single-room ventilation to homes over 450 m²
Model range
| Model | Air flow | Coverage | Installation |
|---|---|---|---|
| Ariosa V | 350 / 450 / 600 m³/h | over 450 m² | vertical, in a technical room |
| Ariosa V Compact | 150–250 m³/h | up to 185 m² | vertical, width 56 cm, depth 40 cm |

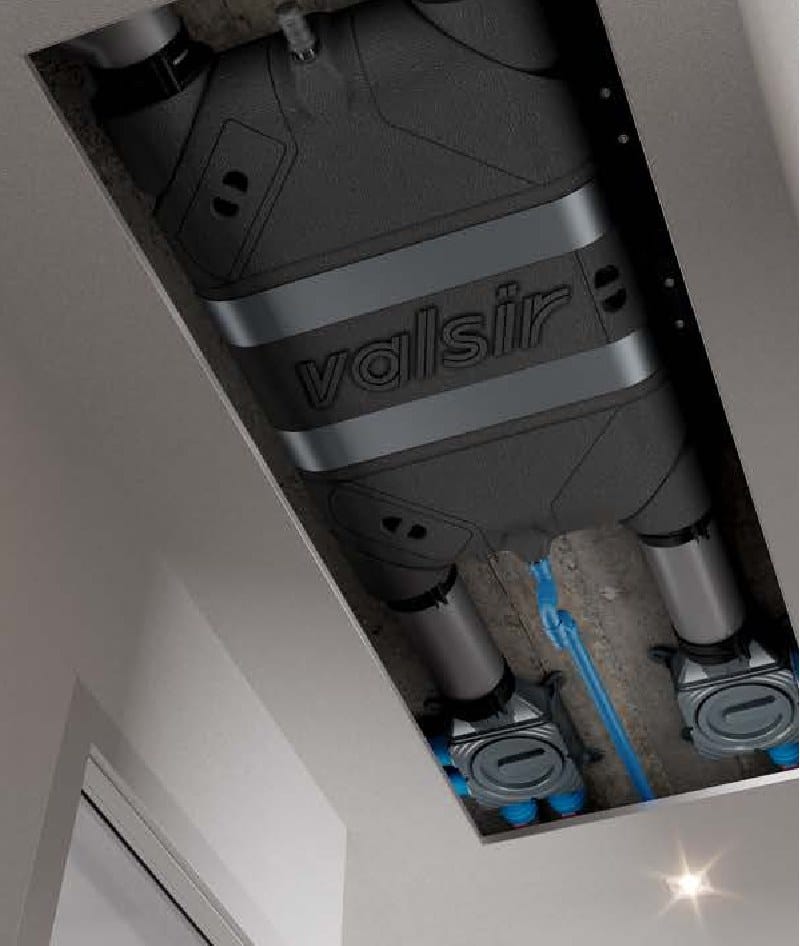

| Ariosa HV | 170 / 250 / 330 m³/h | over 250 m² | suspended ceiling or wall, 21 cm thick |
| Ariosa DOT | 100 m³/h | up to 70 m² | external wall, two Ø 125 mm holes |
| Ariosa DOT Mini | up to 70 m³/h | room up to 50 m² | surface or recessed |
| Brezza60 | single room | one room | external wall |
ARIOSA DOT
Ariosa DOT is a decentralised single-room ventilation unit with heat recovery. The wall-mounted unit needs only two wall penetrations and a power connection - no ductwork. Range: DOT (sensible heat exchanger), DOT E (enthalpy) and DOT HP with a cooling circuit that dries the supply air.
Product information
- Heat recovery above 90 % efficiency with a counter-flow exchanger
- Air flow up to 100 m³/h (28 l/s); one unit serves roughly 70 m²
- Sound level 37 dB(A)
- No ductwork: two wall penetrations and a power connection
- LCD touch screen, Wi-Fi and app control, daily and weekly programs
Technical data
| Heat recovery | above 90 % (counter-flow exchanger) |
| Air flow | up to 100 m³/h (28 l/s) |
| Sound level | 37 dB(A) |
| Coverage | about 70 m² per unit |
| Weight | 24 kg (DOT) · 28 kg (DOT E/HP) |
| Models | DOT (sensible) · DOT E (enthalpy) · DOT HP (supply-air drying) |
| Control | LCD touch screen · Wi-Fi · app · daily and weekly programs |
| Accessories | 400 W pre-heater · filter set · LCD cover plug |
ARIAPUR
Ariapur is an odour and vapour extraction fan with two extraction paths: through a wall or ceiling grille and directly from the WC pan via the flush pipe. It connects to the drainage vent stack and needs no separate exhaust duct; a non-return valve prevents backflow. Available for Tropea S and Winner S frame versions.
Product information
- Dual extraction: room air via the grille and odours straight from the WC pan
- Adjustable capacity: 65–80 m³/h (Ariapur 80 / 80 T) and 85–100 m³/h (Ariapur 100 Led)
- Non-return valve prevents odour backflow; several units on one vent stack
- Switch or motion-sensor activation; 2–30 min timer completes the air change
- Ariapur 100 Led: integrated 12 W LED light, 4000 K, 960 lm
Technical data
| Principle | dual extraction: wall/ceiling grille and WC pan via the flush pipe |
| Capacity | Ariapur 80 / 80 T: 65–80 m³/h · Ariapur 100 Led: 85–100 m³/h (adjustable) |
| Timer | 2–30 min (80 T and 100 Led) |
| Connection | to the drainage vent stack, no separate exhaust duct · flush-pipe entry left or right |
| Activation | switch or motion sensor · 100 Led light separately switchable |
| Compatibility | Tropea S and Winner S (Ariapur versions) |
ARIASILENT
Ariasilent is an air-distribution system for residential heat-recovery ventilation where every part comes from one range: ducts (Tube, Flex and rigid insulated EPE), distribution boxes, Link universal couplers with pre-fitted seals, silencers, design vents and grilles, and roof/wall terminals. Patented tear-open ports, the flow divider and grille fixing speed up installation.
Product information
- Airtightness class ATC 1 (±2,000 Pa) per UNI EN 17192:2019
- Antistatic, antibacterial smooth bore: hygiene, low pressure loss, camera-inspectable
- Fire class E (EN 13501-1)
- Duct sizes: round 63/75/90 mm and oval 50×102 / 55×126 mm
- Two-layer PE construction: corrugated RAL 7011 outside, smooth white bore
Technical data
| Airtightness | ATC 1 (±2,000 Pa) · UNI EN 17192:2019 |
| Fire class | E (EN 13501-1) |
| Duct sizes | round 63 / 75 / 90 mm · oval 50×102 / 55×126 mm |
| Crush resistance | over 250 N (round) · over 80 N (oval) |
| Distribution boxes | Box 6 / 8 Compact · Box 18 · Box 18 Therm |
| Terminals | wall · flat roof · tiled roof · chimney |
BREZZA 60
Brezza 60 is Valsir's single-room heat-recovery unit for homes and commercial spaces: decentralised ventilation without ductwork through one Ø 160 mm wall penetration. The ceramic heat-recovery core works in alternating 70-second supply/extract cycles. The design front panel adapts to interiors.
Product information
- Ceramic heat-recovery core, alternating 70 s cycle · efficiency up to 93 %
- Air flow up to 60 m³/h · 3 speeds (30/45/60 m³/h, power 4.9–8.9 W)
- Quiet: 13/20/23 dB(A) at 3 m on speeds 1/2/3
- Master–slave synchronisation for up to 16 units · wireless control
- Humidity sensor (40/55/70 %) modulates air flow · light sensor
Technical data
| Air flow | up to 60 m³/h · 3 speeds (30/45/60 m³/h) |
| Efficiency | up to 93 % (ceramic core, 70 s cycle) |
| Sound level | 13/20/23 dB(A) at 3 m |
| Electrical | 230 V, 50 Hz · max 8.9 W · IPX4 |
| Dimensions | 215 × 215 mm, depth 83 mm · duct Ø 160 mm, length 400 mm (250–700 mm) |
| Operating range | -20 °C … +50 °C · RH max 80 % · weight 4.3 kg |
